Opel Corsa. Fuse box on the left side of the instrument panel

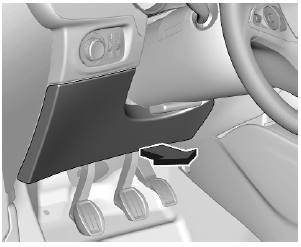

In left-hand drive vehicles, the fuse box is behind a cover in the instrument panel. Disengage cover at the bottom side and remove.

Opel Corsa. Fuse box on the left side of the instrument panel

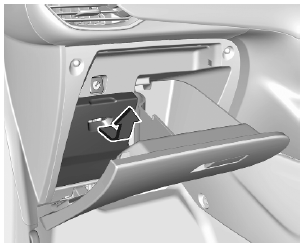

In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox and remove the cover.

Opel Corsa. Fuse box on the left side of the instrument panel

No. Circuit

1    Radar / Interior mirror

3    Inductive charging

4    Horn

5    Windscreen washer

6    Windscreen washer

7    USB

8    Rear wiper

10    Central locking system

11    Central locking system

12    Diagnostic connector module

13    Climate control system

14    Alarm / Opel Connect

17    Instrument cluster

21    Power button / Anti-theft locking system

22    Rain sensor / Light sensor / Camera

23    Seatbelt reminder

24    7" Touchscreen / Parking assist / Rear view camera

25    Airbag

27    Anti-theft alarm system

29    7" Touchscreen / Infotainment

31    Cigarette lighter / 12 V power outlet

32    Heated steering wheel

33    Climate control system / Automatic transmission

34    Parking assist / Exterior mirror adjustment
