Opel Corsa: Bulb replacement / Halogen headlights
Halogen headlights with separate
bulbs for low beam and high beam /
daytime running light.
![Opel Corsa. Halogen headlights](images/halogen_headlights-1917/1671/opel_corsa_halogen_headlights_598.gif)

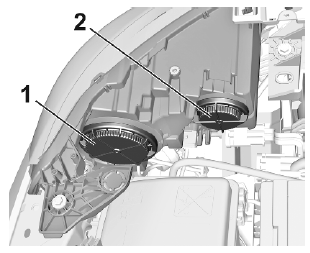

Low beam (1) outer bulb.
High beam / daytime running light (2)
inner bulb.
Before replacing a bulb, ensure that
all exterior and interior lights and the
ignition are switched off.
Only hold a new bulb at the base. Do
not touch the bulb glass with bare
hands...
Remove the protective cover by
pulling.
Withdraw the bulb socket from the
reflector housing.
Detach the bulb from the bulb
socket and replace the bulb...
Other information:
Do not place any objects on the cover.
Removing cover
Unhook retaining straps from tailgate.
Lift cover at the front and push it
upwards at the rear.
Remove the cover.
Fitting cover
Engage cover in side guides and fold
downwards. Attach the retaining
straps to the tailgate...
Controls for:
temperature
air distribution ,
and y
fan speed
demisting and defrosting
cooling A/C
air recirculation
heated rear window and exterior
mirrors
heated seats
Heated rear window .
Heated exterior mirrors .
Heated seats ...
