Opel Corsa: Halogen headlights / High beam / daytime running light (2)

Opel Corsa. High beam / daytime running light (2)

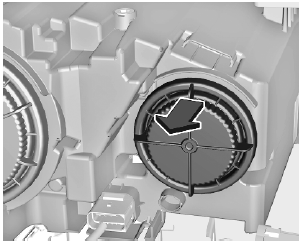

  1. Remove the protective cover by pulling.

Opel Corsa. High beam / daytime running light (2)

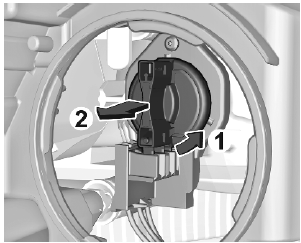

  1. Rotate the bulb socket anticlockwise to disengage and withdraw from the reflector.
  2. Insert the new bulb socket into the reflector housing.
  3. Fit the protective cover on.

    Low beam (1)

    Remove the protective cover by pulling. Withdraw the bulb socket from the reflector housing. Detach the bulb from the bulb socket and replace the bulb...

    LED headlights. Front fog lights. Front turn lights

    LED headlights Headlights for low and high beam, daytime running lights and turn lights are designed as LEDs and cannot be changed. Have lights repaired by a workshop in case of failure...
