Opel Corsa: Halogen headlights / Low beam (1)

Opel Corsa. Low beam (1)

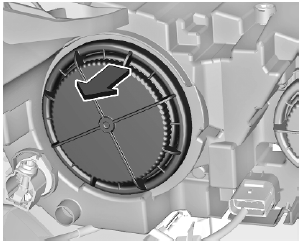

  1. Remove the protective cover by pulling.

Opel Corsa. Low beam (1)

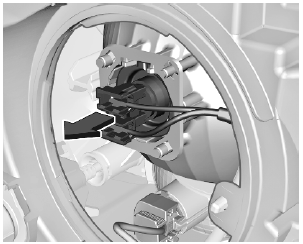

  1. Withdraw the bulb socket from the reflector housing.

Opel Corsa. Low beam (1)

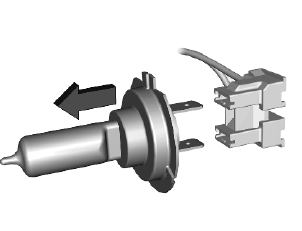

  1. Detach the bulb from the bulb socket and replace the bulb.
  2. Insert the bulb socket into the reflector housing.
  3. Fit the protective cover on.

    Halogen headlights

    Halogen headlights with separate bulbs for low beam and high beam / daytime running light. Low beam (1) outer bulb. High beam / daytime running light (2) inner bulb...

    High beam / daytime running light (2)

    Remove the protective cover by pulling. Rotate the bulb socket anticlockwise to disengage and withdraw from the reflector. Insert the new bulb socket into the reflector housing...
