Opel Corsa: Driver Information Centre / Trip / fuel information menu

Opel Corsa. Trip / fuel information menu

Differerent pages with combined information can be selected.

Turn the adjuster wheel to select a page.

Information page:

Fuel range

Range is calculated from current fuel level and current consumption. The display shows average values.

After refuelling, the range is updated automatically after a brief delay.

When the fuel level is low, a message appears on the display and the control indicator Opel Corsa. Trip / fuel information menu in the fuel gauge illuminates.

Instantaneous Fuel Consumption

Display of the instantaneous consumption.

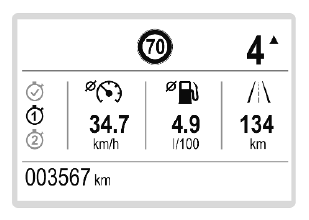

Trip 1 page:

Average speed

Display of average speed. The measurement can be reset at any time.

Average fuel consumption

Display of average consumption. The measurement can be reset at any time and starts with a default value.

Distance travelled

Displays the current distance for trip 1 since the reset.

The values of trip 1 page can be reset by pressing SET / CLR for a few seconds.

Trip 2 page:

Average speed

Display of average speed. The measurement can be reset at any time.

Average fuel consumption

Display of average consumption. The measurement can be reset at any time and starts with a default value.

Distance travelled

Displays the current distance for trip 2 since a certain reset.

The values of trip 2 page can be reset by pressing SET / CLR for a few seconds.

Digital speed page

Digital display of the instantaneous speed.

Autostop time counter

A time counter calculates the time spent in Autostop during a journey. It resets to zero every time the ignition is switched on.

Compass page

Displays the geographic direction of driving.

Blank page

No trip / fuel information is displayed.

    Selecting menus and functions

    The menus and functions can be selected via the buttons on the indicator lever. Turn the adjuster wheel to select a page in the trip / fuel information menu...

    Info Display

    The Info Display is located in the instrument panel near the instrument cluster. The Info Display can indicate: time outside temperature date Infotainment system, see description in the Infotainment Manual indication of rear view camera indication of panoramic view system navigation, see description in the Infotainment Manual vehicle and system messages settings for vehicle p..
