Opel Corsa: Controls / Power outlets

Opel Corsa. Power outlets

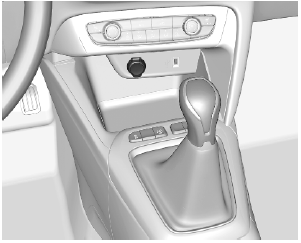

A 12 V power outlet is located in the centre console.

Do not exceed the maximum power consumption of 120 W.

With ignition off, the power outlets are deactivated. Additionally the power outlets are deactivated in the event of low vehicle battery voltage.

Electrical accessories that are connected must comply with the electromagnetic compatibility requirements laid down in DIN VDE 40 839.

Do not connect any current-delivering accessories, e.g. electrical charging devices or batteries.

Do not damage the outlet by using unsuitable plugs.

USB ports

Opel Corsa. Power outlets

A USB port is located in the centre console.

Opel Corsa. Power outlets

Depending on version, an USB port may be located next to the Info Display.

Opel Corsa. Power outlets

Further USB ports may be located in the rear console.

The slot below the USB ports on the rear side of the storage container is intented to attach an accessory cupholder.

The USB ports are prepared for charging external devices and provide a data connection to the Infotainment system. For further information, see Infotainment manual.

Note

The sockets must always be kept clean and dry.
