Opel Corsa: Climate control systems / Air conditioning system

Controls for:

• temperature
• air distribution , and y
• fan speed
• demisting and defrosting
• cooling A/C
• air recirculation
• heated rear window and exterior mirrors
• heated seats

Heated rear window .

Heated exterior mirrors .

Heated seats .

Some setting changes are indicated briefly in the Info Display. Activated functions are indicated by the LED in the respective button.

Temperature

Adjust the temperature by turning to the desired temperature.

red area : warmer

blue area : colder

Heating will not be fully effective until the engine has reached normal operating temperature.

Air distribution

: to windscreen and front door windows

: to head area via adjustable air vents

: to foot well and windscreen

All combinations are possible.

Fan speed

Adjust the air flow by turning E to the desired speed.

clockwise : increase

anticlockwise : decrease

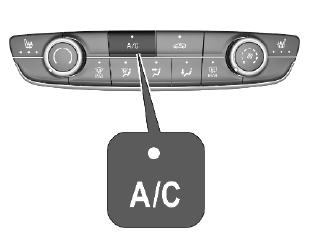

Cooling A/C

Press A/C to switch on cooling. The LED in the button illuminates to indicate activation. Cooling is only functional when the engine is running and fan is switched on.

Press A/C again to switch off cooling. The air conditioning system cools and dehumidifies (dries) as soon as the outside temperature is slightly above the freezing point. Therefore, condensation may form and drip from under the vehicle.

If no cooling or drying is required, switch off the cooling system for fuel saving reasons.

Activated cooling may inhibit Autostops.

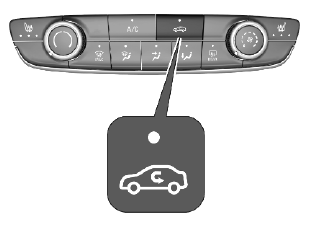

Air recirculation system

Press to activate air recirculation mode. The LED in the button illuminates to indicate activation.

Press again to deactivate air recirculation mode.

Warning

The exchange of fresh air is reduced in air recirculation mode. In operation without cooling the air humidity increases, so the windows may mist up from inside. The quality of the passenger compartment air deteriorates, which may cause the vehicle occupants to feel drowsy.

In warm and very humid ambient air conditions, the windscreen may mist up from outside when cold air is directed towards it. If windscreen mists up from outside, activate windscreen wiper and deactivate .

Maximum cooling

Briefly open the windows so that hot air can disperse quickly.

• Switch on cooling A/C.
• Press for air recirculation system on.
• Press for air distribution.

Set temperature control to coldest level.

Set fan speed to highest level.

Open all vents.

Heated rear window, windscreen and exterior mirrors .

Heated seats .

Demisting and defrosting the windows

• Press : the air distribution is directed towards the windscreen.
• Set temperature controller to warmest level.
• Switch on cooling A/C, if required.
• Set fan speed to highest level.
• Switch on heated rear window .
• Open side air vents as required and direct them towards the door windows.

Note

If is pressed while the engine is running, an Autostop will be inhibited until à is pressed again.

If is pressed while the engine is in an Autostop, the engine will restart automatically.
