Opel Corsa: Electrical system / Fuses

Opel Corsa 2020-2025 Owners Manual / Vehicle care / Electrical system / Fuses

Data on the replacement fuse must match the data on the defective fuse.

The three fuse boxes are located in:

  • engine compartment
  • instrument panel

Before replacing a fuse, turn off the respective switch and the ignition.

A blown fuse can be recognised by its melted wire.

Caution

Do not replace the fuse until the cause of the fault has been remedied.

Some functions are protected by several fuses.

Fuses may also be inserted without existence of a function.

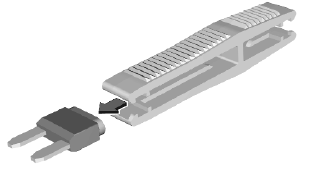

Fuse extractor

A fuse extractor may be located in the cover of the left side of the instrument panel. The extractor has two sides, each side is designed for a different type of fuses.

Opel Corsa. Fuses

Grab the fuse with the fuse extractor and withdraw the fuse.

    Electrical system

    ..

    Engine compartment fuse box

    The fuse box is in the front left of the engine compartment. Disengage the cover and remove it. No. Circuit 1    Climate control system 2    Brake system 3    Fuse box (right side of the instrument panel) 4    Brake system 8    Fuel pump 16    Right headlight / heated windscreen 18    Right high beam 19    Left hig..
