Opel Corsa: Airbag system / Curtain airbag system. Airbag deactivation

Opel Corsa 2020-2024 Owners Manual / Seats, restraints / Airbag system / Curtain airbag system. Airbag deactivation

Curtain airbag system

The curtain airbag system consists of an airbag in the roof frame on each side. This can be identified by the word AIRBAG on the roof pillars.

The curtain airbag system is triggered in the event of a side-on impact of a certain severity. The ignition must be switched on.

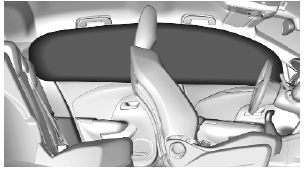

Opel Corsa. Curtain airbag system. Airbag deactivation

The inflated airbags cushion the impact, thereby reducing the risk of injury to the head in the event of a side-on impact considerably.

Warning

Keep the area in which the airbag inflates clear of obstructions.

The hooks on the handles in the roof frame are only suitable for hanging up light articles of clothing, without coat hangers. Do not keep any items in these clothes.

Airbag deactivation

The front passenger airbag system must be deactivated for child restraint system on the passenger seat according to the instructions in the table 3 44. The side airbag and curtain airbag systems, the belt pretensioners and all driver airbag systems will remain active.

Opel Corsa. Curtain airbag system. Airbag deactivation

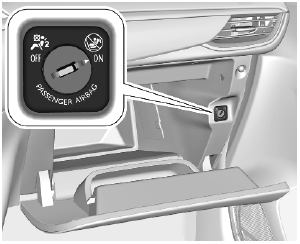

The front passenger airbag system can be deactivated via a keyoperated switch in the glovebox.

Use the ignition key to choose the position:

OFFOpel Corsa. Curtain airbag system. Airbag deactivation : front passenger airbag is deactivated and will not inflate in the event of a collision, control indicator OFFOpel Corsa. Curtain airbag system. Airbag deactivation illuminates continuously in the centre console.

ONOpel Corsa. Curtain airbag system. Airbag deactivation : front passenger airbag is active.

Danger

Deactivate passenger airbag only in combination with the use of a child restraint system, subject to the instructions and restrictions in the table.

Otherwise, there is a risk of fatal injury for a person occupying a seat with a deactivated front passenger airbag.

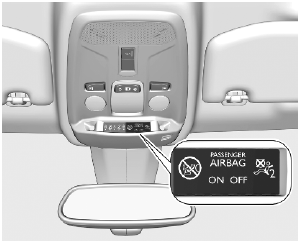

Opel Corsa. Curtain airbag system. Airbag deactivation

If the control indicator Opel Corsa. Curtain airbag system. Airbag deactivation illuminates for approx. 60 seconds after the ignition is switched on, the front passenger airbag system will inflate in the event of a collision.

If the control indicator Opel Corsa. Curtain airbag system. Airbag deactivation illuminates after the ignition is switched on, the front passenger airbag system is deactivated. It stays on while the airbag is deactivated.

If both control indicators are illuminated at the same time, there is a system failure. The status of the system is not discernible, therefore no person is allowed to occupy the front passenger seat. Contact a workshop immediately.

Consult a workshop immediately if neither of the two control indicators are illuminated.

Change status only when the vehicle is stopped with the ignition off.

Status remains until the next change.

    Front and side airbag system

    Front airbag system The front airbag system consists of one airbag in the steering wheel and one in the instrument panel on the front passenger side...
