Opel Corsa: Exterior lighting / High beam. High beam assist

High beam

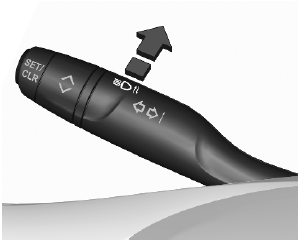

Opel Corsa. High beam. High beam assist

Push to switch from low to high beam.

Push again to deactivate high beam.

High beam assist

This feature activates the high beam when driving in dark surroundings and the vehicle speed is faster than 45 km/h.

The camera in the windscreen detects the lights of oncoming or preceding vehicles. Each LED on right or left side can be triggered or faded out particularly according to the traffic situation. The system switches from low beam to high beam and vice versa to prevent glaring. Once activated, high beam assist remains active and switches high beam on and off depending on surrounding conditions. The latest setting of the high beam assist will remain after the ignition is switched on again.

Activation

The system can be activated via the vehicle settings menu in the Info Display.

High beam is switched on automatically at a speed above 45 km/h. High beam is switched off at a speed below 35 km/h, but high beam assist remains active.

The green control indicator Opel Corsa. High beam. High beam assist illuminates continuously when the high beam assist is activated, the blue Opel Corsa. High beam. High beam assist illuminates when high beam is on.

Pushing left indicator lever once switches on manual high beam without high beam assist.

High beam assist switches automatically to low beam when:

  • Driving in urban areas.
  • Camera detects heavy fog.
  • Rear fog light is switched on.
  • Oncoming vehicles are detected by the camera.

If there are no restrictions detected, the system switches back to high beam.

Deactivation

The system can be deactivated via the vehicle settings menu in the Info Display.

    Light switch. Automatic light control

    Light switch Turn light switch: AUTO : automatic light control switches automatically between daytime running light and headlight : sidelights : headlights When switching on the ignition, automatic light control is active...

    Headlight flash. Headlight range adjustment. Headlights when driving abroad. Daytime running lights

    Headlight flash Pull to activate the headlight flash. Headlight range adjustment To adapt headlight range to the vehicle load to prevent dazzling, turn thumb wheel to required position...
