Opel Corsa: Bulb replacement / LED headlights. Front fog lights. Front turn lights

Opel Corsa 2020-2023 Owners Manual / Vehicle care / Bulb replacement / LED headlights. Front fog lights. Front turn lights

LED headlights

Headlights for low and high beam, daytime running lights and turn lights are designed as LEDs and cannot be changed.

Have lights repaired by a workshop in case of failure.

Front fog lights

Have lights repaired by a workshop in case of failure.

Front turn lights

Opel Corsa. LED headlights. Front fog lights. Front turn lights

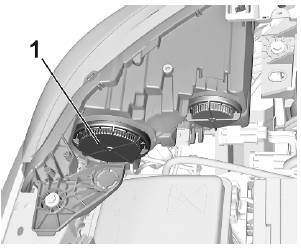

Turn light (1) outer bulb.

Opel Corsa. LED headlights. Front fog lights. Front turn lights

  1. Remove the protective cover by pulling.

Opel Corsa. LED headlights. Front fog lights. Front turn lights

  1. Withdraw the bulb socket from the reflector housing.

Opel Corsa. LED headlights. Front fog lights. Front turn lights

  1. Detach the bulb from the bulb socket and replace the bulb.
  2. Insert the bulb socket into the reflector housing.
  3. Fit the protective cover on.

    High beam / daytime running light (2)

    Remove the protective cover by pulling. Rotate the bulb socket anticlockwise to disengage and withdraw from the reflector. Insert the new bulb socket into the reflector housing...
