Opel Corsa: Tail lights. Number plate light. Interior lights / Tail lights

LED tail lights

Have lights repaired by a workshop in case of failure.

Light assembly in the body

Opel Corsa. Tail lights

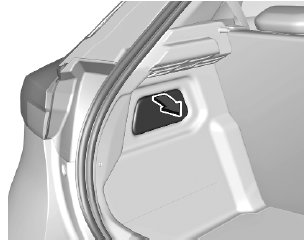

  1. Open the tailgate then remove the access cover on the relevant side.

Opel Corsa. Tail lights

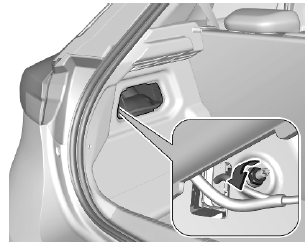

  1. Slacken the lamp fixing nut using a box spanner or socket.

    To avoid losing the nut if it drops into the wing trim, first place a cloth below it.

  2. Manually unscrew and remove the lamp fixing nut.

Opel Corsa. Tail lights

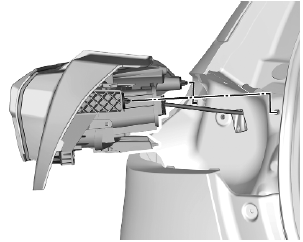

  1. Carefully withdraw tail light assembly from the recess and remove.
  2. Detach the cable from the retainer.

Opel Corsa. Tail lights

  1. Press the five retaining lugs and remove the bulb carrier from the light assembly.

Opel Corsa. Tail lights

  1. Remove and replace the bulbs:

    Tail light / brake light (1)

    Turn light (2)

    Reverse light (3)

  2. Insert the bulb carrier into the light assembly. Attach plug to the light assembly. Fit the light assembly in the recess and tighten the lamp fixing nut from the inside. Attach the cover.

Rear fog light

Opel Corsa. Tail lights

  1. Turn the bulb holder anticlockwise and remove it from the reflector housing.

Opel Corsa. Tail lights

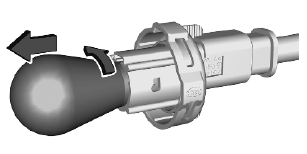

  1. Slightly press down the bulb, turn it anticlockwise and remove it from the socket.
  2. Replace and insert the new bulb into socket by turning clockwise.
  3. Insert the bulb socket into the reflector and turn clockwise.

Centre high-mounted brake light

Have lights repaired by a workshop in case of failure.

Bulb check

Switch on the ignition, operate and check all lights.

    Tail lights. Number plate light. Interior lights

    ..

    Number plate light

    Have lights repaired by a workshop in case of failure...
