Opel Corsa: Controls / Windscreen wiper and washer

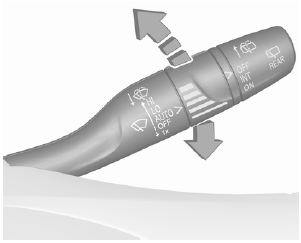

Windscreen wiper with adjustable wiper interval

Opel Corsa. Windscreen wiper and washer

HI : fast

LO : slow

INT : interval wiping

OFF : off

For a single wipe when the windscreen wiper is off, press the lever down to position 1x.

Do not use if the windscreen is frozen.

Switch off in car washes.

To activate interval wiping mode the next time ignition is switched on, press the lever downwards to position OFF and back to INT.

Adjustable wiper interval

Opel Corsa. Windscreen wiper and washer

Wiper lever in position INT.

Turn the adjuster wheel to adjust the desired wipe interval.

Windscreen wiper with rain sensor

Opel Corsa. Windscreen wiper and washer

HI : fast

LO : slow

AUTO : automatic wiping with rain sensor

OFF : off

In AUTO position, the rain sensor detects the amount of water on the windscreen and automatically regulates the frequency of the windscreen wiper. If ignition is switched off for more than one minute, automatic wiping mode is deactivated. To activate automatic wiping mode the next time ignition is switched on, press the lever downwards to position OFF and back to AUTO.

For a single wipe when the windscreen wiper is off, press the lever downwards to position 1x.

Do not use if the windscreen is frozen.

Switch off in car washes.

Adjustable sensitivity of the rain sensor

Opel Corsa. Windscreen wiper and washer

Turn the adjuster wheel to adjust the sensitivity.

Opel Corsa. Windscreen wiper and washer

Keep the sensor free from dust, dirt and ice.

Control indicator Opel Corsa. Windscreen wiper and washer.

Windscreen washer

Opel Corsa. Windscreen wiper and washer

Pull lever. Washer fluid is sprayed onto the windscreen and the wiper wipes a few times.
