Opel Corsa: Airbag system / Front and side airbag system

Front airbag system

The front airbag system consists of one airbag in the steering wheel and one in the instrument panel on the front passenger side. These can be identified by the word AIRBAG.

The front airbag system is triggered in the event of a front-end impact of a certain severity. The ignition must be switched on.

Opel Corsa. Front and side airbag system

The inflated airbags cushion the impact, thereby reducing the risk of injury to the upper body and head of the front seat occupants considerably.

Warning

Optimum protection is only provided when the seat is in the proper position.

Keep the area in which the airbag inflates clear of obstructions.

Fit the seat belt correctly and engage securely. Only then is the airbag able to protect.

Side airbag system

Opel Corsa. Front and side airbag system

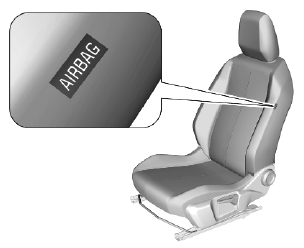

The side airbag system consists of an airbag in each front seat backrest. This can be identified by the word AIRBAG

The side airbag system is triggered in the event of a side impact of a certain severity. The ignition must be switched on.

Opel Corsa. Front and side airbag system

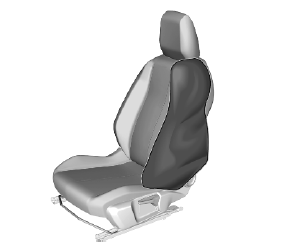

The inflated airbags cushion the impact, thereby reducing the risk of injury to the upper body and pelvis in the event of a side-on collision considerably.

Warning

Keep the area in which the airbag inflates clear of obstructions.

Note

Only use protective seat covers that have been approved for the vehicle. Be careful not to cover the airbags.

    Airbag system

    The airbag system consists of a number of individual systems depending on the scope of equipment. When triggered, the airbags inflate within milliseconds...

    Curtain airbag system. Airbag deactivation

    Curtain airbag system The curtain airbag system consists of an airbag in the roof frame on each side. This can be identified by the word AIRBAG on the roof pillars...
