Opel Corsa: Controls / Inductive charging
Warning
Inductive charging can affect the
operation of implanted
pacemakers or other medical
devices. If applicable, seek
medical advice before using the
inductive charging device.
Warning
Remove any metal objects from
the charging device before
charging a mobile device, as these
objects could become very hot.
To charge a device, the ignition must
be switched on.

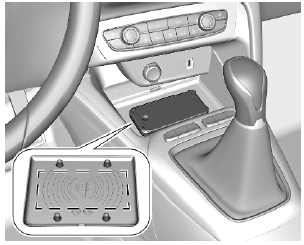

To charge a mobile device:
- Remove all objects from the
charging device.
- Place the mobile device with the
display facing upwards on the
charging area. Note that the
mobile device must not be placed
on the positioning aids located
above and below the charging
area.
Qi compatible mobile devices can be
charged inductively.
On some mobile devices, a back
cover with an integrated coil or a
jacket may be required to use
inductive charging.
Protective cover for the mobile device
could have impact on the inductive
charging.
In the event that the mobile device is
not charging properly, rotate it 180°
and place it on the charging device
again.
Status LED
The LED indicates the current
charging status.
Illuminates green
The mobile device is charging.
Flashes yellow
The mobile device has not been
centred properly in the charging zone
or an unknown object has been
detected in the charging zone.
Illuminates yellow
There is a problem with the mobile
device's battery or a fault of the
inductive charger has been detected.
If the problem persists, seek

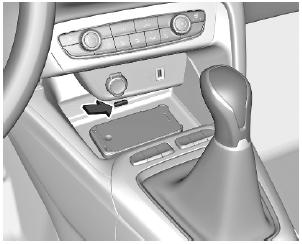

A 12 V power outlet is located in the
centre console.
Do not exceed the maximum power
consumption of 120 W.
With ignition off, the power outlets are
deactivated...
Cigarette lighter
Press in cigarette lighter. It switches
off automatically once the element is
glowing. Pull out cigarette lighter.
Ashtrays
Caution
To be used only for ash and not for
combustible rubbish...
