Opel Corsa: Load compartment / Load compartment cover

Do not place any objects on the cover.

Removing cover

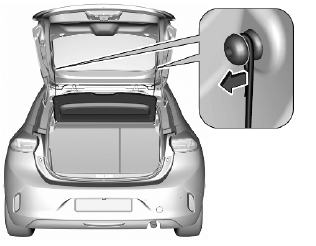

Opel Corsa. Load compartment cover

Unhook retaining straps from tailgate.

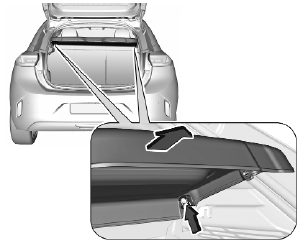

Opel Corsa. Load compartment cover

Lift cover at the front and push it upwards at the rear.

Remove the cover.

Fitting cover

Engage cover in side guides and fold downwards. Attach the retaining straps to the tailgate.

    Load compartment

    The rear seat backrest is divided into 2/3 to 1/3 parts. Both parts can be folded down individually to increase the size of the load compartment. Before folding rear seat backrests, execute the following if necessary: Move front seats forward if necessary...

    Rear floor storage cover. Lashing eyes

    Rear floor storage cover The rear floor cover can be lifted and removed. Use opening to raise the rear floor cover and then remove it. Lashing eyes The lashing eyes are designed to secure items against slippage, e...
