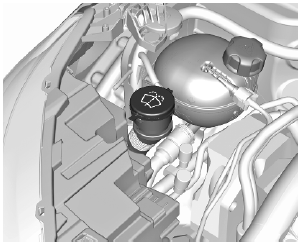

Opel Corsa: Vehicle checks / Washer fluid

Fill with clean water mixed with a
suitable quantity of approved
windscreen washer fluid which
contains antifreeze.
Caution
Only washer fluid with a sufficient
antifreeze concentration provides
protection at low temperatures or
a sudden drop in temperature.
The factory filled coolant provides
freeze protection down to approx.
-37 °C.
Caution
Only use approved antifreeze.
Coolant level
Caution
Too low a coolant level can cause
engine damage...
Brakes
In the event of minimum thickness of
the brake lining, a squealing noise
sounds during braking.
Continued driving is possible but
have the brake lining replaced as
soon as possible...
Other information:
The fuse box is in the front left of the
engine compartment.
Disengage the cover and remove it.
No. Circuit
1 Climate control system
2 Brake system
3 Fuse box (right side of the
instrument panel)
4 Brake system
8 Fuel pump
16 Right headlight / heated windscreen
18 Right high beam
19 Left hig..
LED headlights
Headlights for low and high beam,
daytime running lights and turn lights
are designed as LEDs and cannot be
changed.
Have lights repaired by a workshop in
case of failure.
Front fog lights
Have lights repaired by a workshop in
case of failure.
Front turn lights
Turn light (1) outer bulb.
Remove the protective cover by
pulling.
Withdraw the bulb socket from the
refle..
