Opel Corsa: Front seats / Manual seat adjustment
Drive only with engaged seats and
backrests.
Longitudinal adjustment
Pull handle, slide seat, release
handle. Try to move the seat back and
forth to ensure that the seat is locked
in place.

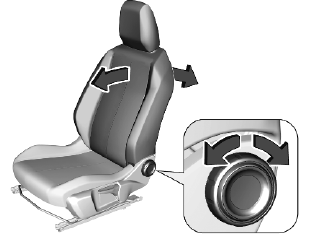

Backrest inclination
Turn handwheel. Do not lean on
backrest when adjusting.

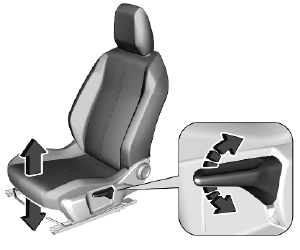

Seat height
Lever pumping motion
up : seat higher
down : seat lower
Warning
Only drive with the seat correctly
adjusted.
Warning
Never adjust seats while driving as
they could move uncontrollably.
Danger
Do not sit closer than 25 cm to the
steering wheel, to permit safe
airbag deployment...
Power seat adjustment
Warning
Care must be taken when
operating the power seats. There
is a risk of injury, particularly for
children. Objects could become
trapped...
Other information:
The camera is mounted in the rear
bumper above the number plate.
The area displayed by the camera is
limited. The distance of the image that
appears on the display differs from
the actual distance.
Guidelines
The first horizontal line represents a
distance of about 30 cm beyond the
edge of vehicle's rear bumper...
