Opel Corsa: Vehicle tools / Tools
Vehicles with spare wheel
Open the load compartment.

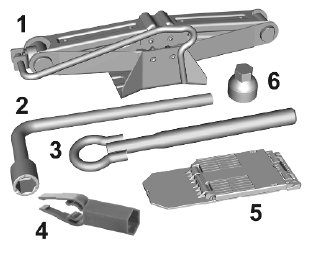

The tools are located in the tool bag:
- Jack (1)
- Wheel wrench (2)
- Towing eye (3)
- Wheel bolt cover remover (4)
- Chock (5)
- Adapter for the locking wheel nuts (6)

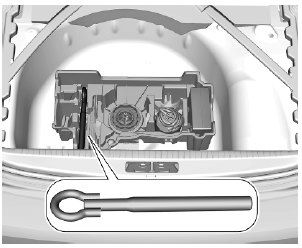

Vehicles without spare wheel

The towing eye is located in a box
below the floor cover in the load
compartment.
Tyre condition, wheel condition
Drive over edges slowly and at right
angles if possible. Driving over sharp
edges can cause tyre and wheel
damage. Do not trap tyres on the kerb
when parking...
Other information:
Headlight flash
Pull to activate the headlight flash.
Headlight range adjustment
To adapt headlight range to the
vehicle load to prevent dazzling, turn
thumb wheel to required position.
0 : front seats occupied
1 : all seats occupied
2 : all seats occupied and load
compartment laden
3 : driver's seat occupied and load
compartment laden
Headlights when driving abroad
When driving in countrie..
Vehicle identification number
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the windscreen,
or in the engine compartment on the
right body panel.
Identification plate
The identification plate is located on
the front left or right door frame.
Information on identification label:
1 : manufacturer
2 : type approval number
3 : vehicle identification..
